Bevy Magic Fx

在RON文件中定义基于网格的VFX并将其加载到bevy中

如何使用

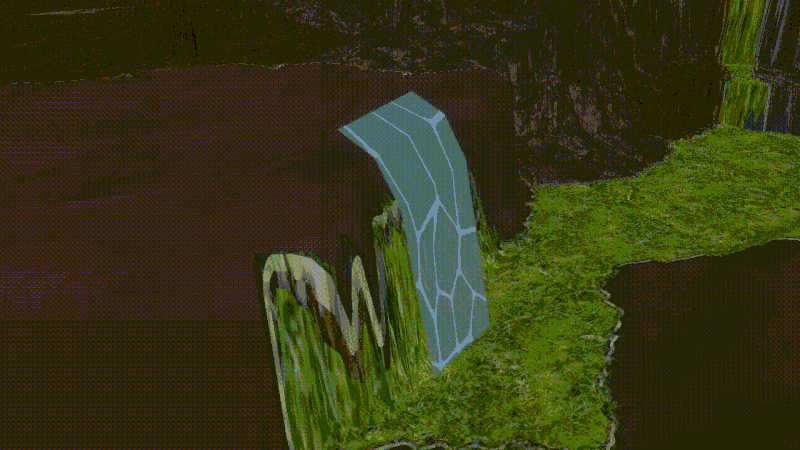

cargo run --example waterfall

如何安装

1. 将此插件添加到您的bevy应用程序中

app .add_plugins( MagicFxPlugin )

2. 从文件加载并注册您的着色器变体

 		let shadvar_name = & shader_variant_manifest.name;

                    let shader_material_handle = animated_materials.add( build_animated_material(
                        shader_variant_manifest, // the ron file parsed
                        &texture_handles_map
                        ).unwrap()
                    );

                    asset_loading_resource.animated_material_map.insert(
                        shadvar_name .clone(),
                        shader_material_handle );


3. 从文件加载并注册您的魔法fx变体

 let magic_fx_variant_manifest: &MagicFxVariantManifest = fx_variant_assets
                        .get(&asset_handles_resource.magic_fx_variant_manifest_handle)
                        .unwrap();

                     let mesh_handles_map = &asset_loading_resource.mesh_handles_map;

                    let animated_materials_map = &asset_loading_resource.animated_material_map;

                    let magic_fx = MagicFxVariant::from_manifest(
                        magic_fx_variant_manifest, // the ron file parsed

                        &mesh_handles_map,

                        &animated_materials_map,


                    ).unwrap();

			//save the variant for later spawning ..
 		asset_loading_resource.loaded_magic_fx_variants.insert(
                        magic_fx.name.clone(),
                        magic_fx );


4. 随时创建您的魔法fx变体

             let _magic_fx_root = commands
                        .spawn(SpatialBundle::default())
                        .insert(MagicFxVariantComponent {
                            magic_fx,  //this is what you saved in a resource in step 3
                            start_time: time.elapsed(),
                        })
                        .id();

示例VFX定义文件（RON）

(

    name: "magic",

    magic_fx_instances: [(

     shader_variant_name: "shader_variants/purple.shadvar.ron",
	  mesh_name:  "meshes/projectile.obj",
		  start_time_offset: 0.0,
		  end_time_offset: 3.0,
		  start_transform: (translation: (3.0,2.0,0.0), rotation:(0.0,0.0,0.0),scale:(1.0,1.0,1.0)),
		  end_transform: (translation: (4.0,0.0,0.0), rotation:(2.0,0.0,0.0),scale:(1.0,1.0,1.0)),

    )] ,

    max_time: 5.0


)

示例着色器变体定义文件（RON）

(

    name: "purple",
    texture: "textures/fire_01.png",
    animation_speed: (0.5,0.1), // Assuming animation_speed is a string for some reason; otherwise, consider using a float or int
    distortion_speed: (0.02,0.01),
    scroll_repeats: ( 3.0,3.0),
    distortion_amount: 0.02 ,

    color: Rgba(
        red: 5,
        green: 5,
        blue: 255,
        alpha: 255 // Assuming your Color struct has rgba fields; adjust according to your actual Color struct
    ),
     emissive:  (
        5.0,20.0,5.0
    )

)

牌面

要在网格上使用牌面，您必须在相机中插入一个MagicFxBillboardTarget组件。
